hanchine case | 3d vision assists cylindrical roller turning processing with automatic and disorderly loading and unloading volume_up content_copy share
datetime:2019年11月13日
01 project background

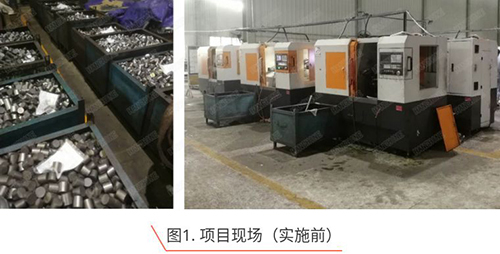

as the most competitive enterprise in china's bearing industry, in order to solve the current difficulty in recruiting and retaining people, the problem of invisibly increasing a lot of labor costs, and the eagerness to improve the automation level of cylindrical roller turning processing. finally, the "2 sets of 3d vision 3 robot systems to realize the automatic loading and unloading of rollers of 4 sets of lathes" designed by hanchine.


02 project proposals

two sets of 3d vision robot disorderly loading systems and one set of robotic unloading and palletizing systems are used. each loading system is responsible for two sets of lathes, and the unloading system is responsible for four sets of lathes at the same time, as shown in figure 2:


among them, the 3d vision robot disorderly feeding system is mainly composed of a 3d vision camera, a robot and its control cabinet, an industrial computer, a seventh axis and an end effector, as shown in figure 3:


through 3d vision robot seventh axis technology, the automatic feeding of the disordered and scattered rollers in the deep frame is realized, the grasping cycle is no more than 12 seconds, the grasping accuracy is better than ±2.0mm, and it is compatible with φ40~60mm roller.

on-site video of disorderly loading:




among them, the robot unloading and palletizing system is mainly composed of the robot and its control cabinet, the end effector, the conveying roller line, etc., as shown in figure 4:


through the design and control technology of the end effector, the automatic stacking and blanking functions of the tray and the roller are realized. the blanking cycle is no more than 6 seconds, and it is compatible with φ40~60mm rollers.

unloading and palletizing live video:


03 project effect

  •  based on 3d vision and robots, the rollers of 4 sets of lathes can be automatically loaded and unloaded, reducing labor costs by about 75%
  • based on the design of the end mechanism and the seventh-axis control technology, it greatly reduces the blind area of grasping, and the grasping success rate is significantly improved
  •  the entire system is simple to use, and ordinary workers on site can complete operation and maintenance

faster, more precise, and smarter are hanzhen intelligent's engineering goals for rbp. he has been deeply involved in the vision industry for many years and has a deep understanding of rbp, and can provide highly integrated solutions and vision products that integrate optical, mechanical, electrical, algorithms, and software according to project needs.
