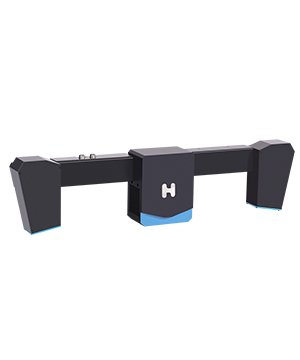

trued2305ld 3d camera
trued2305ld 3d camera
trued2305ld is a cost-effective binocular structured light 3d camera for typical bin-picking applications such as machine loading and unloading, unstacking, and sorting.
1. industrial grade design ensures stability
2. very high dynamic range of 3d imaging
3. high scanning frame rate: 60hz
4. positioning accuracy: ±0.3mm ~ ±0.8mm
application
bin picking
height
1200mm~2500mm
max. view
1700mm×1050mm
min. view
880mm×500mm
depth of field
>1200mm
scanning rate
≤1.5hz
scanning method
fne / muf (built-in multiple encoding methods,optional)
accuracy*
±0.3mm~±0.08mm
date interface
usb3.0(3m/5m/10m optional)
power input
12vdc,10a max
api
c / c (windows 10, 64bit)
operating temp.
0℃~50℃
storage temp.
-10℃~60℃
rotection level
active cooling, all aluminum alloy body, ip54
shock resistance
frequency 10-60hz,1.5mm two-way amplitude in x/y/z three directions,lasting 1 hour
certification
ce、fcc
