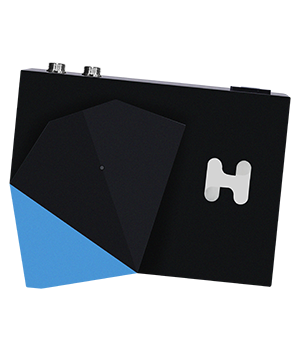

trued2305ms 3d camera
trued2305ms 3d camera
trued2305ms is a monocular structured light 3d camera specially developed for visual positioning guidance. it can also be used for defect detection and size measurement with lower accuracy requirements. it can be used with lighting sources to obtain 2d grayscale images with uniform brightness.
1. industrial design, ip65 protection
2. bright and switchable rgb/w light source
3. 24bit-rgb mode 120hz projection, hdr high dynamic adjustment
4. detection accuracy: 80μm
application
bin picking; defect detection with lower precision requirements
height
400mm~600mm
max. view
450mm×260mm
min. view
360mm×210mm
depth of field
>200mm
scanning rate
≤5.0hz
scanning method
fne / muf (built-in multiple encoding methods,optional)
accuracy*
±0.08mm
date interface
usb3.0(3m/5m/10m optional)
power input
12vdc,10a max
api
c / c (windows 10, 64bit)
operating temp.
0℃~50℃
storage temp.
-10℃~60℃
rotection level
passive cooling, all aluminum alloy body, ip65
shock resistance
frequency 10-60hz,1.5mm two-way amplitude in x/y/z three directions,lasting 1 hour
certification
ce、fcc
*  based on vdi/vde 2634
