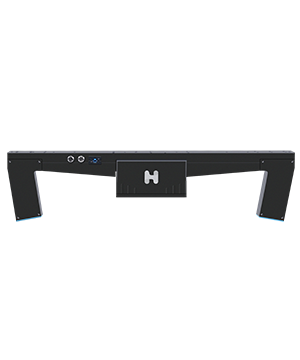

truem2305xld 3 d camera
truem2305xld 3d camera
truem2305xld adopts a unique hardware system, multi-line laser scanning imaging and inter-frame parallax propagation algorithms that integrate image features, effectively suppressing point cloud noise, imaging field of view can reach 2500mm, and can be used for unstacking and visual positioning and loading and unloading of large workpieces.
1. multi-line laser, fast scanning speed
2. no need to focus, large depth of field of view
3. uniform brightness and high imaging accuracy
4. positioning accuracy: ±0.6mm ~ ±1.5mm
application
bin picking with large field of view and large depth of field
height
1500mm~3000mm
max. view
2500mm×2160mm
min. view
1250mm×1080mm
depth of field
>1500mm
scanning rate
≤1.5hz
scanning method
mems multi-line laser
accuracy*
≤1.5mm
date interface
usb3.0(3m/5m/10m optional)
power input
12vdc,10a max
api
c / c (windows 10, 64bit)
operating temp.
0℃~50℃
storage temp.
-10℃~60℃
rotection level
all aluminum alloy body, ip65
shock resistance
frequency 10-60hz,1.5mm two-way amplitude in x/y/z three directions,lasting 1 hour
certification
ce、fcc
