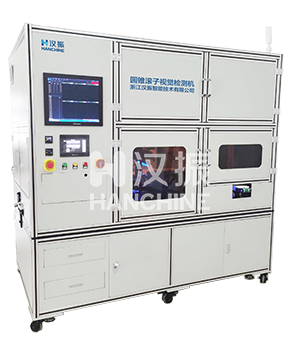

bearing roller inspection equipment
model:hz-vi-cr0580
——achieve comprehensive inspection of appearance defects of cylindrical/tapered rollers

1. checkable size: outer diameter φ5mm-80mm, length 3mm-120mm
2. defect types: rust; black spots; black end surface; outer diameter knocks; outer diameter scratches; pit edges bumps; abrasions; scratches; pips; electric shocks; chamfer size; comet marks; pit size
3. detection speed: up to 3pcs/s


equipment parameters
testing products
cylindrical/tapered roller
checkable size
outer diameter φ5-80mm;length 3-120mm
defects types
rust; black spots; black end surface; outer diameter knocks and scratches,etc.
detect method
multi-station online inspection
max. speed
3pcs/s
power source
220v, 50hz; 0.6mpa
mechanic module
precise loading, inspection and transportation, unloading and sorting
algorithm
result output, statistics, display, and mes docking
